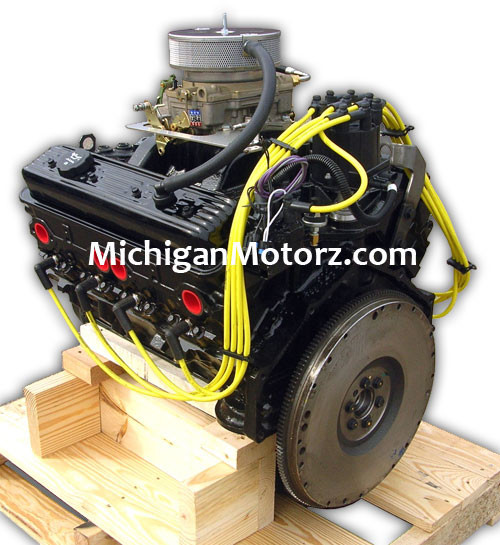

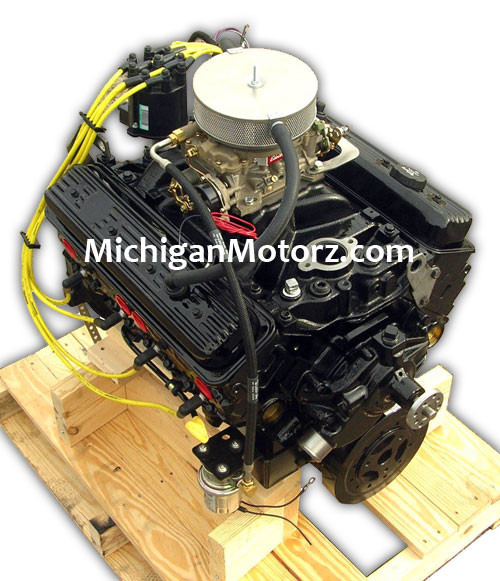

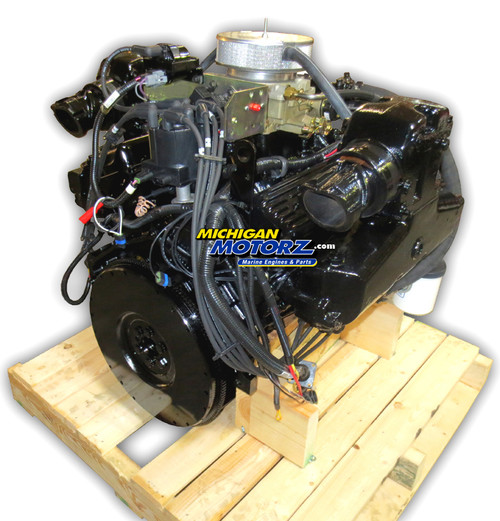

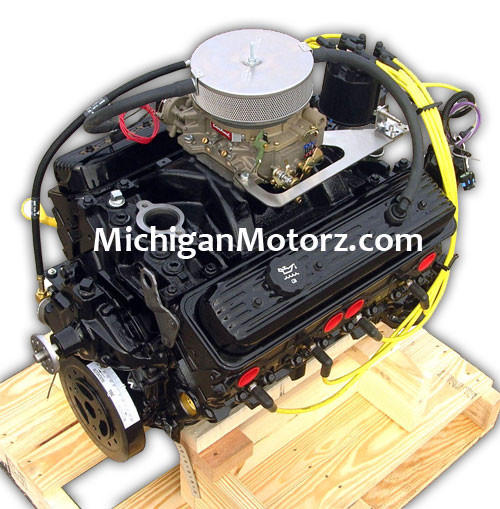

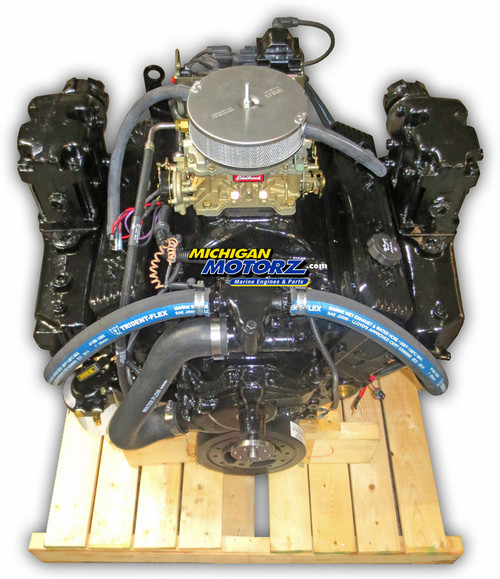

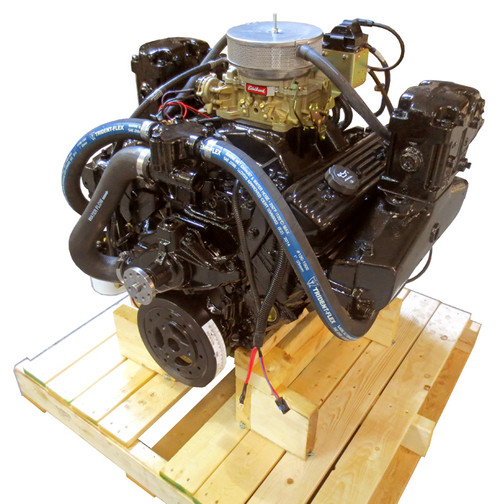

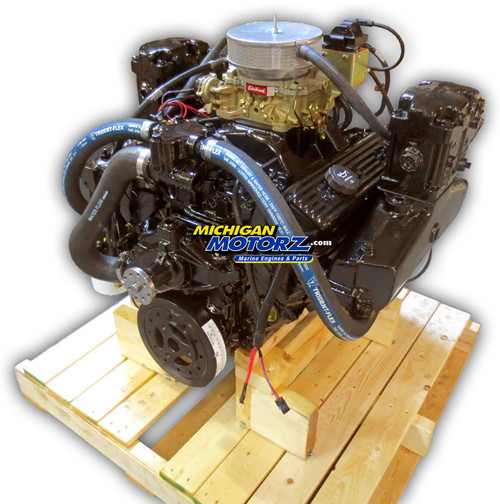

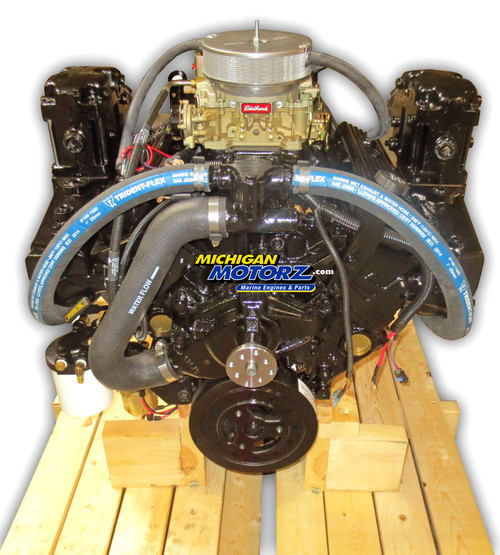

This 5.7L GOLD package is great for those that need a little more than just a base engine or long block, but still don't quite need a complete engine package. This 5.7L GOLD package is rated at 260 hp @ 4800 RPM at the crank and will fit, bolt in, and work in nearly all 5.0L & 5.7L marine applications from 1986-Current with no modifications. (Pre-1986 applications will need to update the flywheel and in certain applications, the engine coupler). If you have an existing MerCruiser, Alpha One, Volvo Penta, OMC, or any other outdrive or inboard transmission, NO modifications or gear ratio changes are required when installing this 5.7L engine package. 12-3/4" or 14" flywheel available. This 5.7L Gold Package comes with the following components:

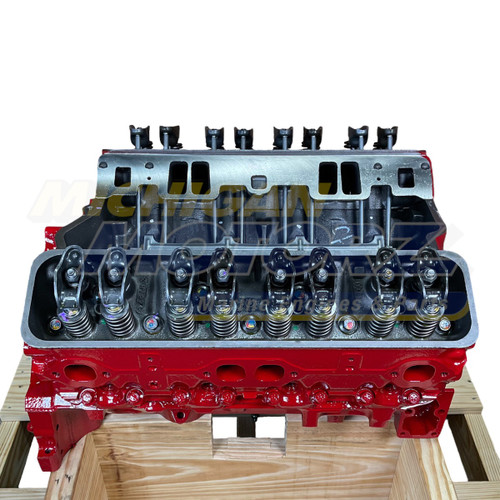

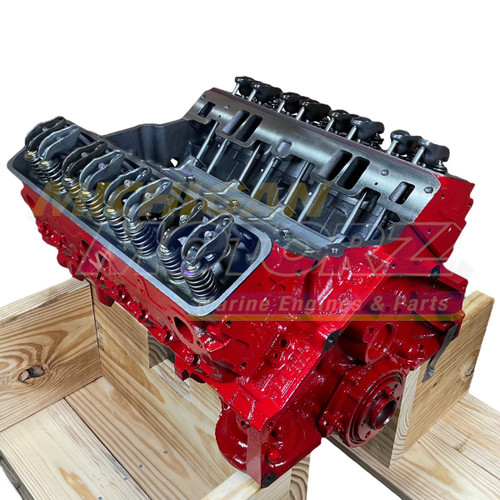

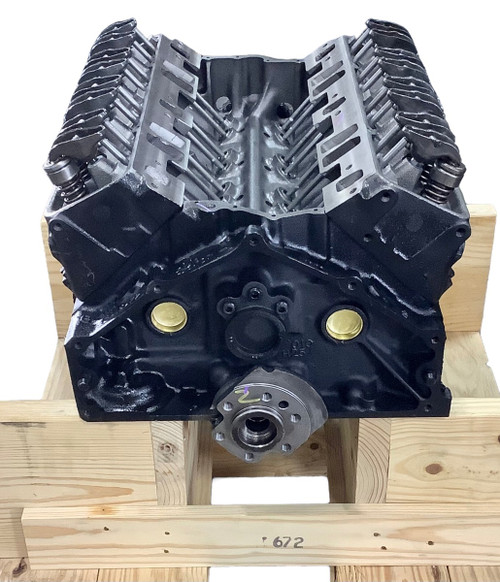

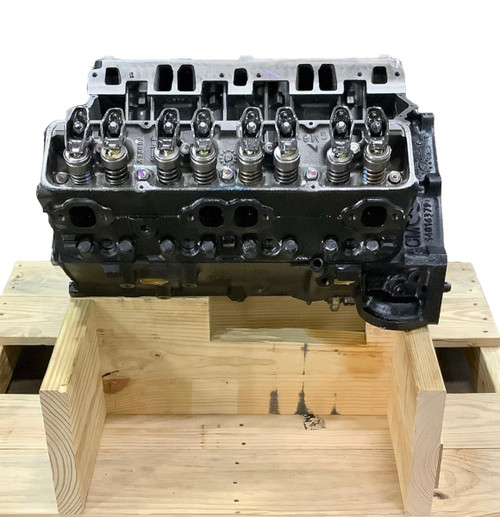

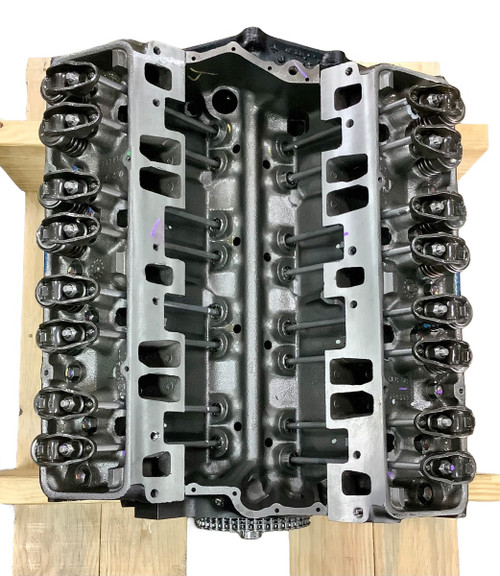

- 5.7L Marine Engine NEW - Cast iron block, Teflon coated pistons, high flow cylinder heads with sintered powered-metal exhaust valve seat inserts. These are just a few of the features that add up to more horsepower, greater low-end torque, excellent durability, and longevity. All marine engine manufacturers (MerCruiser, Volvo Penta, Marine Power, Indmar, PCM, etc) use this exact 5.7L engine because of its excellent performance and proven durability.
- Exhaust manifolds and risers - Included in the GOLD package is your choice of MerCruiser, Volvo Penta, OMC, Indmar, etc., exhaust manifolds, risers, gaskets, and bolts.
- Cast-Iron or Aluminum* Hi-Rise Intake Manifold - Michigan Motorz installs this 4-barrel intake manifold for its lightweight durable design and 15hp increase over standard intake manifolds. This manifold is made for freshwater AND the harshest saltwater environments. We also include a thermostat housing and thermostat kit with this GOLD package. (*Additional $250.00 for the aluminum intake manifold option).
- Four barrel marine carburetor - Designed and calibrated for optimum marine performance in small-block V8 engines.
- Electric fuel pump- a low-pressure electric fuel pump (U.S. Coast Guard Approved), that delivers the right amount of fuel to the carburetor. Also includes a fuel pump bracket, misc wires, and an oil pressure switch. Loss of oil pressure will automatically shut off the fuel pump thereby preventing gas vapors from accidental ignition and preventing possible damage to the engine.
- Delco Voyager Ignition Kit - Voyager distributor with Electronic Spark Timing (EST), High energy ignition coil, 8mm marine spark plug wires and spark plugs, shift interrupt wire, timing tool, and other misc wires to easily connect to included marine engine wire harness. (U.S. Coast Guard Approved).
- Engine wire harness - We install a brand new engine wire harness and hook up the included components such as the distributor and coil, electric fuel pump, carburetor, engine temperature switch, and oil pressure switch. This is a common round 10-pin plug used in marine applications and hooks up to your existing gauges.
- Also included - 14" I/O or inboard flywheel, bi-directional circulation pump, harmonic balancer, 5-quart marine oil pan (5.5 quarts of oil required with oil filter), side-mounted dipstick and tube, EZ oil drain kit, and complete installation guide and operation manual.
- INBOARD ENGINE OPTION - ADD $300
- Inboard 14" flywheel
- Inboard dipstick & tube assembly
Specialized exhaust manifolds may incur an additional charge. - THIS 5.7L GOLD PACKAGE IS RAN, TESTED AND TIMED BEFORE SHIPMENT
$300 refundable core charge
TWO YEAR LIMITED WARRANTY
