Brand new Bravo Three X outdrive - these gear ratios available:
1.36 - 5-5442100TZ
1.50 - 5-5442200TZ
1.65 - 5-5442300TZ
1.81 - 5-5447400TZ
2.00 - 5-5447600TZ
2.20 - 5-5447500TZ
2.43 - 5-5442700TZ
Brand new Bravo Three XR outdrive - these gear ratios available:
1.65 - 5-5H41300UP
1.81 - 5-5H41400UP
2.00 - 5-5H41600TZ

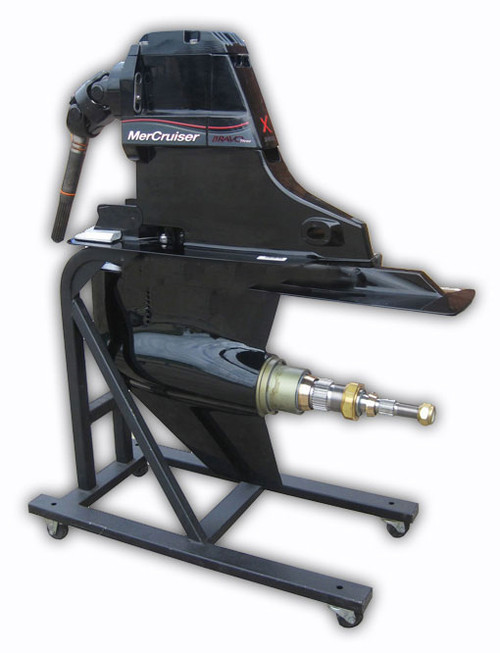

More than an upgrade from the Alpha drive, this Bravo Three X outdrive is the best-in-class when it comes to shifting. Its counter-rotating propeller design enables agile handling in reverse for precision maneuverability.
This is a GENUINE MerCruiser outdrive, it is not an aftermarket outdrive.
Brand new with a 1-year MerCruiser warranty.
Please call or e-mail us to specify which gear ratio you need for your application.
RELIABILITY...
- Precision shimmed near-net forged helical steel gears for quiet operation and durability.
- K 360 low copper alloy for corrosion resistance
- Tri-Paint System (Irridite, EDP & Powder Paint) creates a tough, durable corrosion-resistant barrier
- Armored trim lines protect the hydraulic system from debris
- Flow-Torq II Propeller Hub – The “Weekend Saver” protects the entire drive from damage, not just the lower unit
PERFORMANCE... - Trim limit switch trims drive angle for maximum performance every time
- Through-Prop exhaust maximizes power and reduces noise levels
- The Bravo Three drive’s twin propellers and large rudder area allow uncompromised handling for single- or twin-engine boats capable of speeds up to 65 mph.
EASY OWNERSHIP... - Drive Lube Monitor – Alarm warns if drive lube is low. Engine mounting allows easy inspection and fill without the cost to pull a boat from the water.
- Permalube ® U-Joint – Virtually No Maintenance Required
- Maintenance Free Hinge Pins – No added cost to pull a boat from the water
- Greaseable Drive Coupler – No added cost to pull a boat from the water
- New permanently lubricated gimbal bearing does not require maintenance
TECHNOLOGY... - Power Trim XD ® Automatically Returns the Drive to the Water to Maintain Full Control of Boat in Case of an Emergency
- MerCathode® monitors the galvanic potential of the drive and counteracts corrosion with a metered electrical charge providing continuous cathodic protection
- Engine Guardian System® with MPI engines protects the drive from damage from low lubricant levels
- Brand new with a 1-year MerCruiser warranty.
Compatible Engines
496 Mag High Output
496 Mag
377 MAG
350 MAG
5.0 MPI
5.7 TKS
5.0 TKS
4.3 MPI
4.3 TKS
HP525 EFI
(Stand & propeller not included)
SPECIFICATIONS... -
Maximum Power Capacity320 HP (235 KW) - Application-Specific, Consult Your CMD DistributorLower Unit DesignLarge Rudder Area Twin PropMax. Propeller Diameter2 X 16"Water Inlet LocationStrutClutch TypeHigh-Strength Smooth-Shift Cone Clutch with F-N-RCounter-RotationTwin PropUpper Unit Gear SetPrecision Shimmed Assembly with Near-Net Forged Helical Gears, Steel Chimney Bearing Supports, Reinforced Ribbed Top CapLower Unit Gear SetPrecision Shimmed Assembly Forged Bevel Gears with Twin Counter-Rotating Propshafts for Bravo ThreePropshaft MaterialHeat-Treated Stainless SteelStandard Exhaust OutletLow-Restriction Through PropellerRequired Propeller Hub TypeNone for Bravo ThreeRecommended LubricantMercury High-Performance Gear LubeMonitoring SystemDrive Lube Monitor w/Audio WarningCorrosion Warranty3-Year, LimitedHousing ConstructionXK 360 Low-copper Alloy Machined for Large BearingsCorrosion ProtectionTri-Paint, Anodes & MerCathode® Electronic Corrosion PreventionAnode TypeUltra-Pure Aluminum Anodes or Magnesium Anode KitSpeedometer Pick-upIntegrated Into Lower HousingSteering SystemSingle Cylinder Power Steering with Anti-FeedbackSteering Range56° Range Stop to StopU-Joint TypeHeavy Duty Permalube® Virtually Maintenance-FreePower Trim SystemTwin-Cylinder Hydraulic Featuring Power Trim XD® Kick-up ReturnTypical Trim Range-2° to 14°Trim Limit SwitchAdjustable Limit Analog or Digital - Engine DependantTrailer Limit51°Trim Hinge Pin DesignPermanently Lubricated - No Maintenance RequiredHydraulic Trim LinesStainless Steel Braided ArmorDrive CouplerGreaseable From Inside BoatDrive Weight151 lbs. (68 kg)
Shipping DIMS (Int.): 33" x 27" x 38" - 200 lbs.
