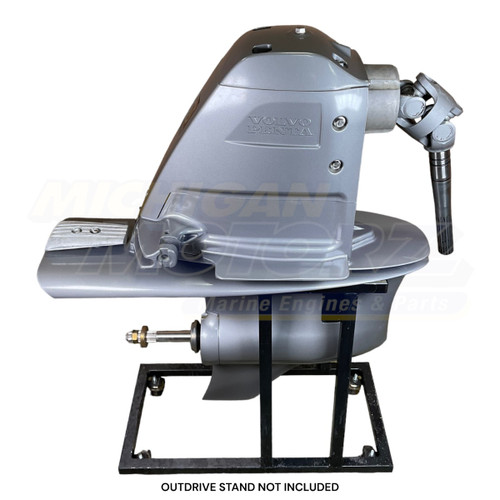

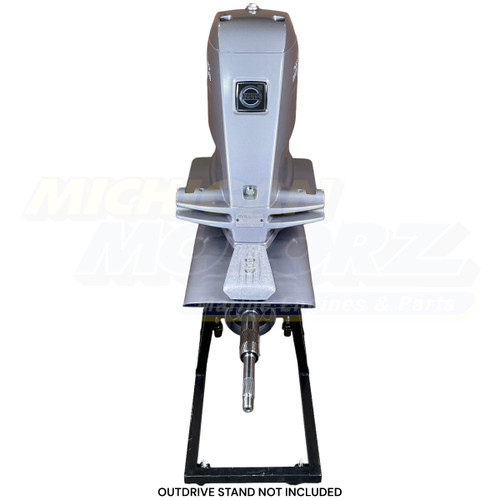

For use with pre-2007 applications, this new generation Volvo Penta SX single prop outdrive is the best single propeller alternative on the market. The wide rudder area gives precise handling - especially important for close-quarters maneuvering. Top speed is maximized by the hydrodynamically designed lower housing which also hosts technically advanced transmission features. SX is a solid base for true boating fun!
The SX single propeller drive is of the most modern design, featuring exhaust through the propeller hub, for quiet and efficient operation, a cone clutch for easy and smooth shifting, pattern-matched spiral bevel gears for optimum strength and minimum gear whine, and a break-away shaft coupling to prevent costly drive train repairs.
The hydrodynamic design of the lower drive housing ensures excellent course stability both at high speed and when maneuvering at low speeds and in reverse.
The drive is equipped with easily maneuvered hydraulic power trim for obtaining the best running position at different sea and load conditions.
For maximum corrosion protection, the drive has gone through a 23-step paint process and comes equipped with sacrificial anodes both on the drive and transom shield. Either right- (standard) or left-handed propellers can be used. A choice of stainless steel and aluminum propellers is available for different applications.
Ratios Available:
1.79:1 - part #3869336
1.66:1 - part #3869337
1.60:1 - part #3869338
1.51:1 - part #3869339
1.43:1 - part #3869340
Features:
- Single propeller drive which can be run with both right- and left-hand propellers
- Cone clutch
- Coolant water intake for the engine located at the lower part of the drive
- Pattern-matched spiral bevel gears
- Through-hub exhaust
- Overload protection sleeve (break-away coupling)
- The drive can be tilted 55°
- The drive can be turned 28° in each direction
- Built-in kick-up function to reduce possible damage, in the event the drive strikes an underwater object
- Belt-driven power steering pump (option)
- Active corrosion protection as an accessory
Other Features Include:
- Hydro-dynamically improved design giving better speed and performance.
- Even more durable internal drive train for longer service life.
- Lower weight for better performance.
- Reduced maintenance need (e.g. only 2 anodes and maintenance-free gimbal ring).
- Higher capacity through-the-drive exhausts for greatly reduced sound and smell.
- Integrated speedometer pick up.
Prop not included.
