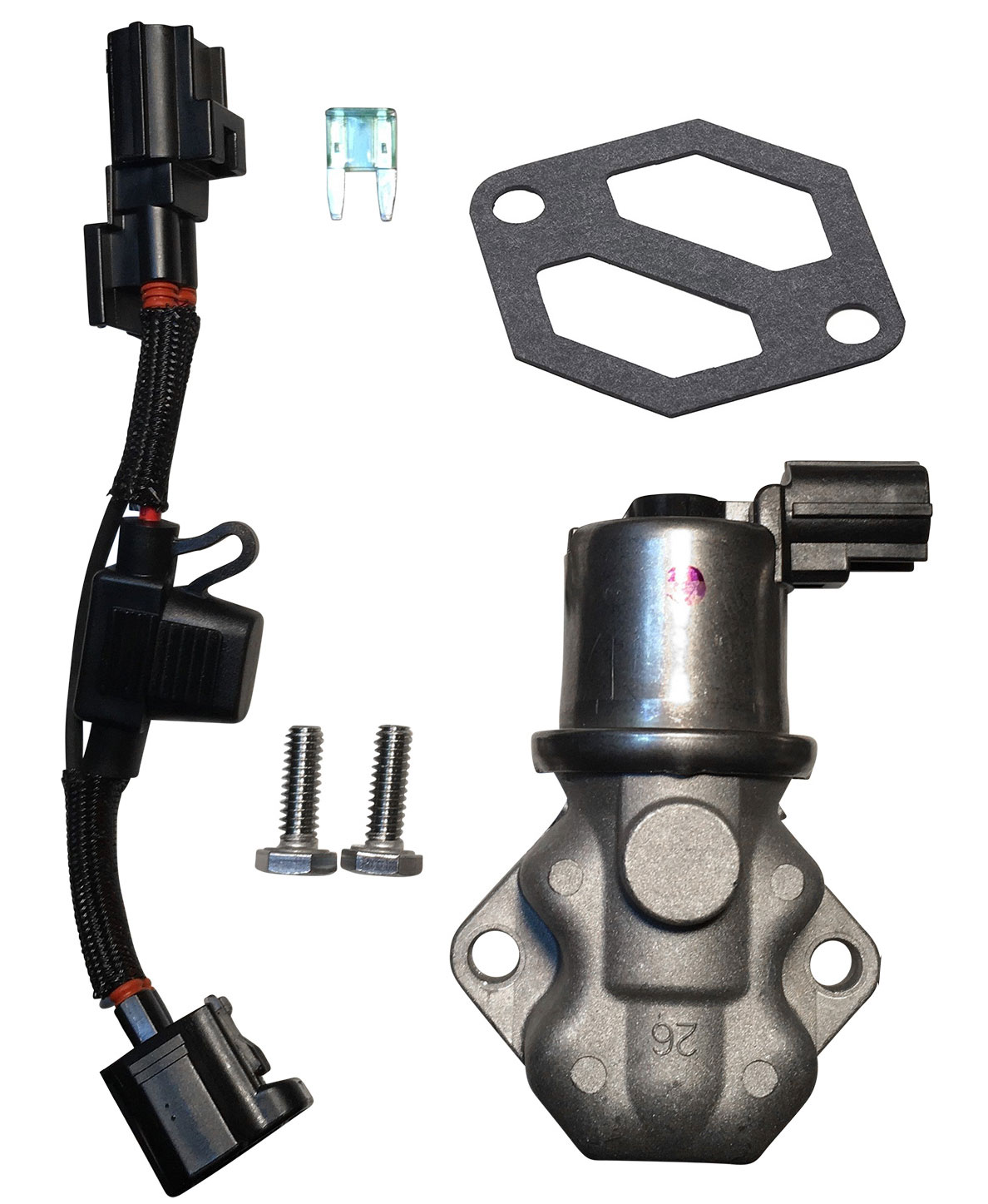

The Marine Design Corporation IAC Survival Kit - Single Engine Version, is designed specifically for Mercury Racing 600SCi, 662SCi and 700SCi engines but will work with many other applications. See the full list of compatible engines in the additional info section. Our kit eliminates costly PCM damage that can occur when an IAC fails, which can be a common occurrence. The kit was developed for twin engine applications and includes two plug-and-play IAC harnesses that are fused to prevent a direct short to the PCM. Also included are two USA made IAC units with gaskets, hardware, (just in case you drop one in the bilge) spare fuses and a canvas storage pouch. Replacement IACs and fuses are also available.
The advantage of the harness is to prevent a failed IAC from damaging the PCM, which is $2,000+ to replace. The harness contains a replaceable fuse that will blow and prevent the shorted IAC from damaging the PCM (ECU-Computer). This is a common failure point blamed on the IAC but the root problem isn't the IACs, it's the fact that Mercury is exceeding the duty cycle on many of the engines that causes them to overheat and short out.
IAC Survival Kit (221-1090) & IAC Harness Kits (221-1091) will fit the following engines. Mercury part number for the IAC is 862998
3.0L MPI EC - 1A072812 & Up
600 SCi - 0M952908 THRU 0M962885
600 SCi - 0M962886 & Up
662 SCi - 0M956580 THRU 0M962885
662 SCi - 0M962886 & Up
700 SCi - 0M962886 & Up
700 SCi - 0M954560 THRU 0M962885
350 MAG MPI SKI - 0M300000 THRU 0M316999
350 MAG MPI SKI - 0M317000 THRU 0W689999
350 MAG MPI SKI - 0W690000 THRU 1A089999
5.7L MPI SKI - 1A090000 & Up
5.7L MPI TOWSPORT WITH GEN III - 1A091881 & Up
5.7L SKI EC - 1A090000 & Up
BLACK SCORPION 350 MAG MPI - 0M391600 THRU 0W689999
BLACK SCORPION 350 MAG MPI - 0W690000 THRU 0W698432
BLACK SCORPION MX 6.2L MPI - 0M391750 THRU 0W689999
BLACK SCORPION MX 6.2L MPI - 0W690000 THRU 0W698432
MX 6.2L MPI SKI - 0M317000 THRU 0W689999
SCORPION 350 - 0W698433 & Up
SCORPION 377 - 0W698433 & Up
4.3L MPI ALPHA/BRAVO - 0M615000 THRU 0W309999
4.3L MPI ALPHA/BRAVO - 0W310000 THRU 0W649999
4.3L MPI ALPHA/BRAVO - 0W650000 THRU 0W658582
4.3L MPI ALPHA/BRAVO - 0W658583 THRU 0W658583
4.3L MPI ALPHA/BRAVO - 0W658584 THRU 1A030367
4.3L MPI ALPHA/BRAVO - 1A030368 THRU 1A030369
4.3L MPI ALPHA/BRAVO - 1A030370 THRU 1A063239
4.3L MPI ALPHA/BRAVO - 1A063240 & Up
4.3L MPI ALPHA/BRAVO - 0M300000 THRU 0M614999
4.3L MPI ALPHA/BRAVO EC - 1A637496 & Up
350 MAG MPI HORIZON MIE - 0M310000 THRU 0M316999
350 MAG MPI HORIZON MIE - 0M317000 THRU 0M398371
350 MAG MPI HORIZON MIE - 0M398372 THRU 0W389999
350 MAG MPI HORIZON MIE - 0W390000 THRU 0W689999
350 MAG MPI HORIZON MIE - 0W690000 THRU 1A089999
350 MAG MPI MIE - 0M310000 THRU 0M316999
350 MAG MPI MIE - 0M317000 THRU 0M398371
350 MAG MPI MIE - 0M398372 THRU 0W389999
350 MAG MPI MIE - 0W390000 THRU 0W68999
350 MAG MPI MIE - 0W690000 THRU 1A089999
5.7L MPI HORIZON MIE - 1A090000 THRU 1A092168
5.7L MPI HORIZON MIE - 1A092169 & Up
5.7L MPI MIE - 1A090000 THRU 1A092168
5.7L MPI MIE - 1A092169 & Up
5.7L MPI MIE EC - 1A090000 THRU 1A092168
5.7L MPI MIE EC - 1A092169 & Up
6.2L MPI HORIZON MIE - 1A090000 THRU 1A092168
6.2L MPI HORIZON MIE - 1A092169 & Up
6.2L MPI MIE - 1A090000 THRU 1A092168
6.2L MPI MIE - 1A092169 & Up
6.2L MPI MIE EC - 1A091600 THRU 1A092168
6.2L MPI MIE EC - 1A092169 & Up
8.1L INBOARD (Base) - 0M026000 THRU 0M319124
8.1L INBOARD (Base) - 0M319125 THRU 0W089999
8.1L INBOARD (Base) - 0W090000 THRU 0W389999
8.1L INBOARD (Base) - 0W390000 THRU 0W689999
8.1L INBOARD (Base) - 0W690000 THRU 0W698172
8.1L INBOARD (Base) - 0W691821 THRU 1A380318
8.1L INBOARD (Base) EC - 0W697154 THRU 1A380251
8.1L INBOARD (H.O.) - 0M026000 THRU 0M319190
8.1L INBOARD (H.O.) - 0M319191 THRU 0W089999
8.1L INBOARD (H.O.) - 0W090000 THRU 0W389999
8.1L INBOARD (H.O.) - 0W390000 THRU 0W689999
8.1L INBOARD (H.O.) - 0W690000 THRU 0W698172
8.1L INBOARD (H.O.) - 0W691821 THRU 1A380318
8.1L INBOARD (H.O.) EC - 0W697154 THRU 1A380251
MX 6.2L MPI HORIZON MIE - 0M310000 THRU 0M316999
MX 6.2L MPI HORIZON MIE - 0M317000 THRU 0M398394
MX 6.2L MPI HORIZON MIE - 0M398395 THRU 0W389999
MX 6.2L MPI HORIZON MIE - 0W390000 THRU 0W689999
MX 6.2L MPI HORIZON MIE - 0W690000 THRU 1A089999
MX 6.2L MPI MIE - 0M310000 THRU 0M316999
MX 6.2L MPI MIE - 0M317000 THRU 0M398394
MX 6.2L MPI MIE - 0M398395 THRU 0W389999
MX 6.2L MPI MIE - 0W390000 THRU 0W689999
MX 6.2L MPI MIE - 0W690000 THRU 1A089999
350 MAG MPI ALPHA/BRAVO - 1A623185 & Up
350 MAG MPI ALPHA/BRAVO - 1A300000 THRU 1A611927
350 MAG MPI ALPHA/BRAVO - 1A611928 THRU 1A623184
350 MAG MPI ALPHA/BRAVO - 0M300000 THRU 0M599999
350 MAG MPI ALPHA/BRAVO - 0M600000 THRU 0W059999
350 MAG MPI ALPHA/BRAVO - 0W310000 THRU 0W649999
350 MAG MPI ALPHA/BRAVO - 0W650000 THRU 1A299999
350 MAG MPI ALPHA/BRAVO - 0W060000 THRU 0W309999
350 MAG MPI ALPHA/BRAVO EC - 1A623185 & Up
350 MAG MPI ALPHA/BRAVO EC - 1A300000 THRU 1A611927 and MORE
350 MAG MPI ALPHA/BRAVO EC - 1A611928 THRU 1A623184
350 MAG MPI HORIZON ALPHA/BRAVO - 0M300000 THRU 0M599999
350 MAG MPI HORIZON ALPHA/BRAVO - 0M600000 THRU 0W059999
350 MAG MPI HORIZON ALPHA/BRAVO - 0W310000 THRU 0W649999
350 MAG MPI HORIZON ALPHA/BRAVO - 0W650000 THRU 1A299999
350 MAG MPI HORIZON ALPHA/BRAVO - 0W060000 THRU 0W309999
350 MAG MPI HORIZON ALPHA/BRAVO EC - 1A623185 & Up
350 MAG MPI HORIZON ALPHA/BRAVO EC - 1A300000 THRU 1A611927
350 MAG MPI HORIZON ALPHA/BRAVO EC - 1A611928 THRU 1A623184
377 MAG MPI BRAVO - 1A623185 & Up
377 MAG MPI BRAVO - 1A300000 THRU 1A611927
377 MAG MPI BRAVO - 1A611928 THRU 1A623184
377 MAG MPI BRAVO EC - 1A623185 & Up
377 MAG MPI BRAVO EC - 1A343300 THRU 1A611927
377 MAG MPI BRAVO EC - 1A611928 THRU 1A623184
496 MAG Base Model - 0M025000 THRU 0M687082
496 MAG (Base Model) - 0M687083 THRU 0W059999
496 MAG (Base Model) - 0W060000 THRU 0W309999
496 MAG (Base Model) - 0W310000 THRU 0W649999
496 MAG (Base Model) - 0W650000 THRU 1A066165
496 MAG (Base Model) - 1A066166 THRU 1A350678
496 MAG (Base Model) - 1A350679 & Up
496 MAG (H.O. Model) - 0M025000 THRU 0M687143
496 MAG (H.O. Model) - 0M687144 THRU 0W059999
496 MAG (H.O. Model) - 0W060000 THRU 0W309999
496 MAG (H.O. Model) - 0W310000 THRU 0W649999
496 MAG (H.O. Model) - 0W650000 THRU 1A066165
496 MAG (H.O. Model) - 1A066166 THRU 1A350678
496 MAG (H.O. Model) - 1A350679 & Up
496 MAG EC (Base Model) - 1A066166 THRU 1A350440
496 MAG EC (H.O. Model) - 1A066166 THRU 1A350440
5.0L MPI ALPHA/BRAVO - 1A623185 & Up
5.0L MPI ALPHA/BRAVO - 1A300000 THRU 1A611927
5.0L MPI ALPHA/BRAVO - 1A611928 THRU 1A623184
5.0L MPI ALPHA/BRAVO - 0M300000 THRU 0M599999
5.0L MPI ALPHA/BRAVO - 0M600000 THRU 0W059999
5.0L MPI ALPHA/BRAVO - 0W310000 THRU 0W649999
5.0L MPI ALPHA/BRAVO - 0W650000 THRU 1A299999
5.0L MPI ALPHA/BRAVO - 0W060000 THRU 0W309999
5.0L MPI ALPHA/BRAVO EC - 1A623185 & Up
5.0L MPI ALPHA/BRAVO EC - 1A300000 THRU 1A611927
5.0L MPI ALPHA/BRAVO EC - 1A611928 THRU 1A623184
MX 6.2L MPI BRAVO - 0M300000 THRU 0M599999
MX 6.2L MPI BRAVO - 0M600000 THRU 0W059999
MX 6.2L MPI BRAVO - 0W310000 THRU 0W649999
MX 6.2L MPI BRAVO - 0W650000 THRU 1A299999
MX 6.2L MPI BRAVO - 0W060000 THRU 0W309999
MX 6.2L MPI HORIZON BRAVO - 0M300000 THRU 0M599999
MX 6.2L MPI HORIZON BRAVO - 0M600000 THRU 0W059999
MX 6.2L MPI HORIZON BRAVO - 0W310000 THRU 0W649999
MX 6.2L MPI HORIZON BRAVO - 0W650000 THRU 1A299999
MX 6.2L MPI HORIZON BRAVO - 0W060000 THRU 0W309999
350 MPI ALPHA - 1G400000 & Up
357 HRZ 630A BOBTAIL RM - 1G300000 & Up
357 HRZ 630V BOBTAIL RM - 1G300000 & Up
357 STROKER SCORPION - 1G481121 & Up
383 MAG STROKER - 1G400000 & Up
383 MAG STROKER BRAVO - 1G400000 & Up
383 MAG STROKER INBOARD - 1G300000 & Up
383 STROKER SCORPION - 1G300000 & Up
383 STROKER SCORPION BRAVO - All & Up
385 Performance Tuned - 1G400000 & Up
496 H.O. BRAVO - 1G400000 & Up
8.1L INBOARD (Inline) - 1G300000 & Up
8.1L INBOARD (V-Drive) - 1G300000 & Up
